Non-Contact Radar Level Sensor

Manufactured by BinMaster & Distributed by Wm. Neundorfer & Co.

80 GHz Non-Contact Radar Level Sensors for continuous measurement in dusty silos, bins, and tanks.

Wm. Neundorfer & Co. is BinMaster’s authorized distributor for the Great Lakes region.
65 years of local knowledge, put to work specifying the right sensor for your application.

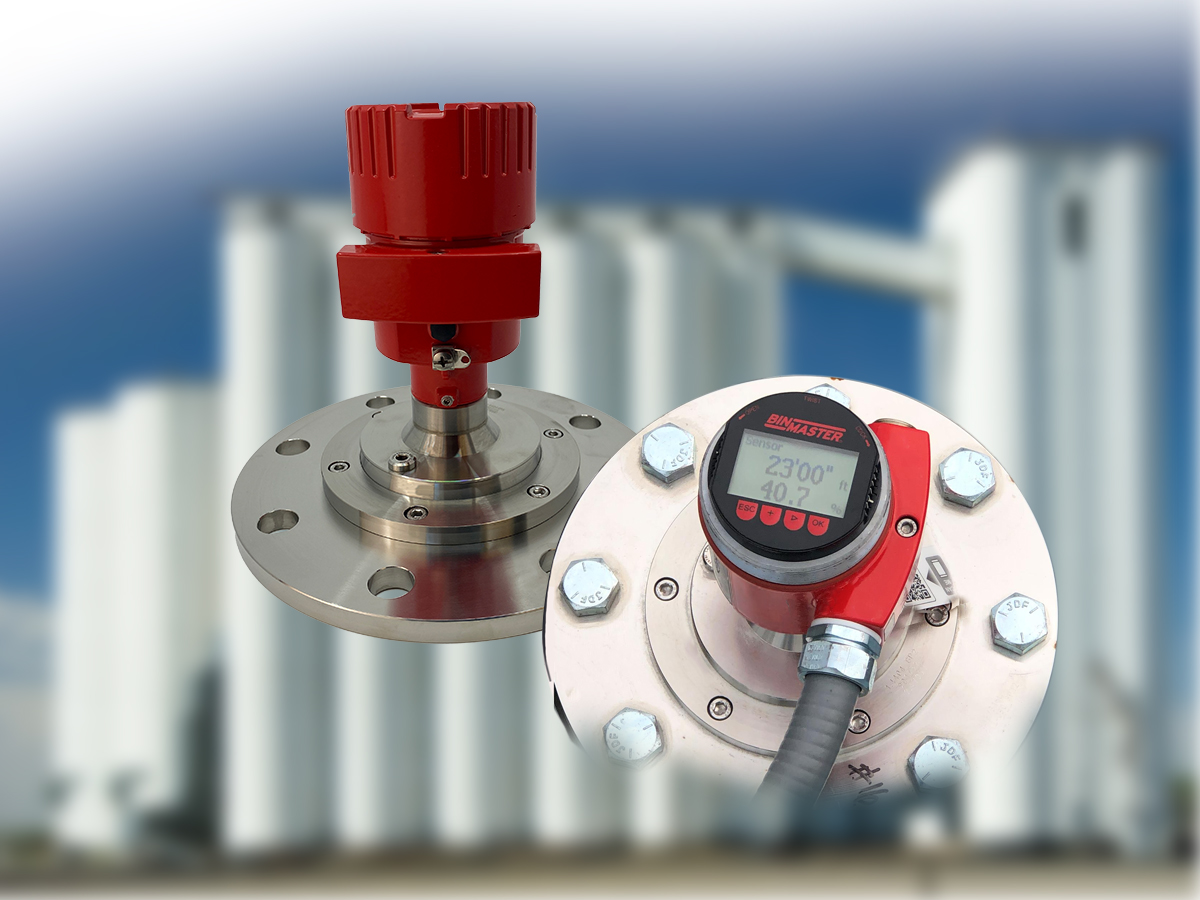

WNC - Non-Contact Radar

Get an application-specific recommendation

Tell us about your vessel. Wm. Neundorfer & Co. will spec the right BinMaster sensor and accessories for your material, environment, and process.

or call (440) 350-7460

Trusted across the Great Lakes region since 1959

Local Inventory
stocked in Painesville, OH

65 Years of
Bulk Material Handling Expertise

Serving the Great Lakes Region
OH, PA, WV, NY

Key Specs

Technology

80 GHz

Non-contact radar

Measuring Range

Up to 393 ft

Varies based on specific model

Accuracy

≤ 0.2 in

Varies based on specific model

Features & Benefits

Penetrates dust, vapor, and condensation where ultrasonic sensors fail — 80 GHz radar reads through the worst plant environments.

Narrow beam angle aims precisely past flow streams, internal structure, and sidewall buildup.

Sealed flat-face antenna resists dust buildup and runs virtually maintenance-free for the life of the sensor.

BinCloud-ready for real-time inventory monitoring from any device — turn your silos into dashboards.

Models

Two families of BinMaster 80 GHz radar, organized by application. Not sure which fits? Tell us about your application and we'll spec the right sensor for you.

NCR-86 Non-Contact Radar

The long-range workhorse. Up to 393 ft, ±0.2 in accuracy, hazardous-location approvals. For cement plants, grain terminals, mining, and large-silo bulk handling.

The full-size long-range workhorse. Up to 393 ft, ±0.2 in accuracy, hazardous-location approvals available. Plastic horn, metal jacketed, or SS NPT threaded housing options.

Model Housing Range Applications
NCR-86-B Plastic Horn Antenna 393 ft Chemicals, water, wastewater,
and food-grade applications
NCR-86-C Metal Jacketed 393 ft Abrasive materials, high temperatures, and
outdoor installations
NCR-86-T Stainless Steel NPT Threaded 80 ft Smaller tanks, vessels,
and tight installation spaces

CNCR Compact Non-Contact Radar

Smaller form factor for vessels under 98 ft, tight spaces, IBCs, and remote installs. Choose by application:

Standard 80 GHz radar for everyday silo and tank applications, 26–98 ft. PVDF chemical/UV/abrasion-resistant housing, IP66/IP68 rated. Grain bins, plastic resin storage, cement silos, liquid storage.

Model Cable Outlet Range Best for
CNCR-110 Top 26 ft Day tanks, small process vessels
CNCR-120 Top 49 ft Mid-size silos, resin storage
CNCR-130 Side 49 ft Limited overhead clearance, retrofits
CNCR-190 Top 98 ft Tall grain silos, cement, water towers



1.5" threaded NPT or straight NPT — installs quickly through existing fittings. Common upgrade path from ultrasonic. Agricultural chemicals, water treatment, beverage, additive tanks, IBCs.
Model Display Range Best for
CNCR-210 None 26 ft Small tanks, IBCs, process vessels
CNCR-220 None 49 ft Mid-size tanks, silos, IBCs
CNCR-230 LED 49 ft Local monitoring & field diagnostics

No wiring required. Up to 3-year lithium battery life, sends data directly to BinCloud — no on-site internet needed. Cement batch plants, grain bins, fertilizer tanks, road salt loadouts, remote containers.

Model Mounting Range Best for
CNCR-320 1.5" NPT 49 ft Mid-size remote bins, fertilizer tanks
CNCR-390 Flange (3-8") 98 ft Tall remote silos, cement, aggregate

316L stainless steel & PTFE wetted parts. 3A, FDA, and EHEDG approved. IO-Link compatible for plant control integration. Milk & dairy, sauces, beverages, pharmaceutical vessels.

Model Display Range Best for
CNCR-400.SS None 49 ft Standard hygienic processes
CNCR-400.LRI Light ring 49 ft Status visible at a distance
CNCR-400.DD Digital + light ring 49 ft Local readings + at-a-distance status

Still narrowing it down?

Tell us your vessel and material — we'll spec the right model for your application.

Mounting

The right mount matters. Roof angle, vibration, retrofit fittings, and Bluetooth accessibility all affect mount selection. Below are the common options. Not sure which is the right fit? Tell us about your application and we'll spec the right mount for you.

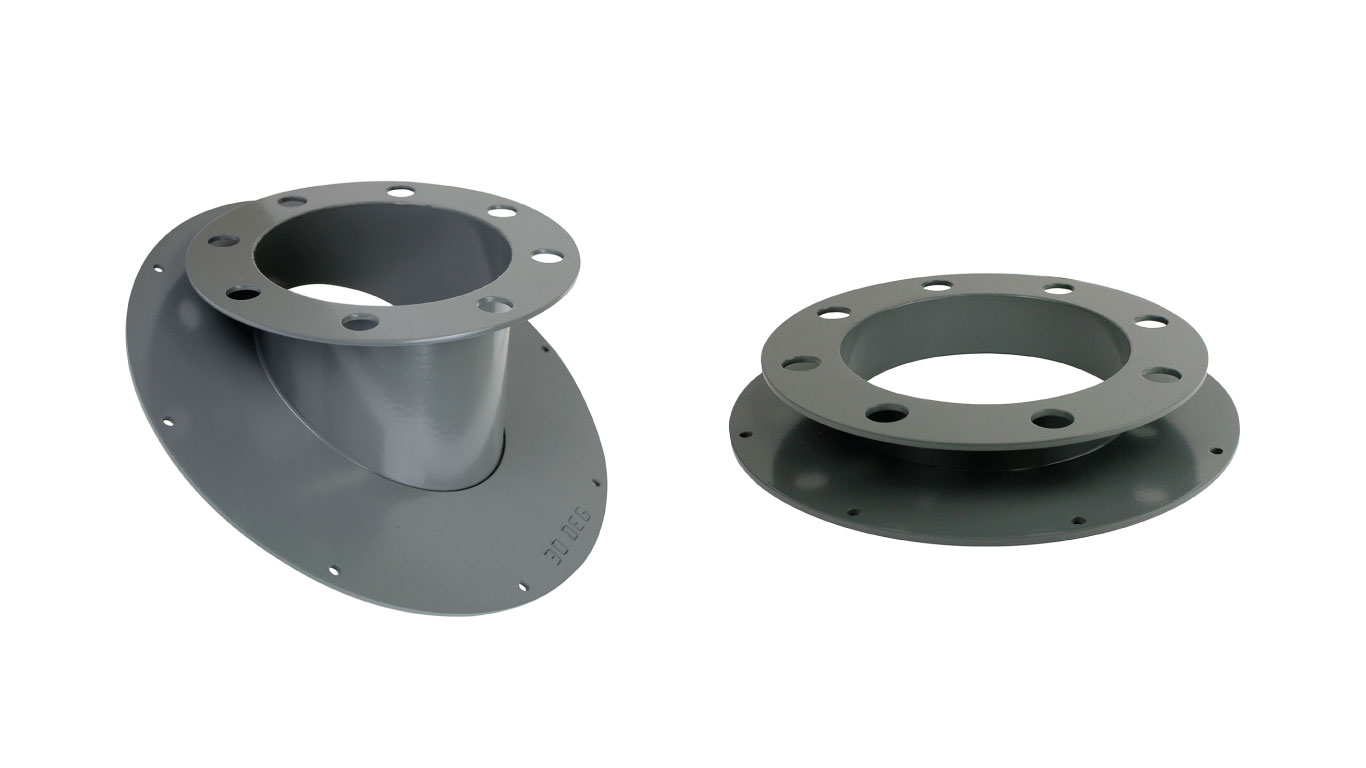

NCR-86 Mounts

NCR-86

Full-size radar mounts onto 3", 4", 6", or 8" flanges. Options for angled silo roofs, vibration-prone installations, and aiming-critical applications.

Flanged mounting plates — 3", 4", 6", 8" ANSI sizes for standard silo flanges
Swivel mounts — up to 10° adjustable aiming for flow-stream avoidance
Angled roof plates — 0°, 10°, 30°, 45° for angled silo tops
SmartBob-to-NCR adapter — retrofit kit when replacing a SmartBob with radar

CNCR

Each CNCR series mounts differently. Pick the row that matches your sensor:

CNCR-100 Series — cabled

1.0" or 1.5" threaded NPT mounting plates, wall-mount brackets (3.25" or 8"), ceiling bracket. Common spec: 1.5" NPT half-coupling on existing fittings.

CNCR-200 Series — threaded NPT

Installs directly through existing 1.5" NPT fittings — usually no additional hardware needed. This is the fastest retrofit path from a failed ultrasonic.

CNCR-300 Series — wireless

CNCR-320 mounts via 1.5" NPT. CNCR-390 uses adapter flange (3", 4", 6", 8") or 3" compression flange for tall silos.

CNCR-400 Series — sanitary

Hygienic tri-clamp and sanitary process connections for food, dairy, beverage, and pharmaceutical vessels. 316L stainless throughout.

Roof Angle

Silos with angled tops need angled mount plates. Mounting a 0° plate on a 10° roof aims the beam at the silo wall.

Bluetooth accessibility

The free BinMaster Sensor app reaches up to 80 ft. Make sure setup location is within range — no climb required.

Vibration

High-vibration locations (mills, crushers) may need rubber isolation gaskets to protect the sensor.

Existing fittings

Most retrofits work with existing 3", 4", or 1.5" NPT fittings. Confirm fitting size and pattern before ordering hardware.

Aiming for flow streams & internal structure

Aim the 4° beam past fill streams, agitators, and sidewalls. A 10° swivel mount usually fixes the issue — or call us with a photo of your silo interior and we'll spec it.

Not sure which mount fits your vessel?

Tell us your vessel type, roof angle, and existing fitting size - we'll spec the hardware for your application.

Industries where 80 GHz radar works

Serving industrial facilities across Ohio, Pennsylvania, West Virginia, and Western New York since 1959. Find your application below — or tell us about your vessel and we'll spec the right model.

Cement & Aggregate

Tall narrow silos, heavy dust, abrasive materials, outdoor storage piles. Cement plants, aggregate yards, sand and gravel.

Common fit:
NCR-86-C, CNCR-190, CNCR-390

Plastics & Resins

Pellets, powders, flakes, resin storage. Pneumatic conveying environments, IBCs, day tanks. Heavy presence across Ohio and Pennsylvania.

Common fit:
CNCR-120, CNCR-190, CNCR-220

Grain & Feed

Grain elevators, feed mills, pet food manufacturing, flour and sugar silos. Tall vessels with dust generation during fill cycles.

Common fit:
NCR-86-B, CNCR-190, CNCR-390

Steel & Metals

Integrated steel mills, mini-mills, foundries. Coke, lime, alloy storage. High temperatures, harsh environments. Cleveland to Pittsburgh corridor.

Common fit:
NCR-86-C, CNCR-190

Food & Beverage

Dairy, beverage, sauce and condiment, animal fat and oil. Hygienic and sanitary requirements. FDA/3A approvals available.

Common fit:
CNCR-400.SS, CNCR-400.DD

Water & Wastewater

Municipal water treatment, lift stations, lagoons, acid and lye storage. Outdoor flow channels and overflow basins.

Common fit:
CNCR-110, CNCR-120, NCR-86-B

Bioenergy & Wood

Wood pellet manufacturing, biomass chips, ethanol and biofuel, rendering. Growing footprint across Pennsylvania and West Virginia.

Common fit:
CNCR-120, CNCR-190, NCR-86-C

Power Generation

Coal feeders, fly ash, ESP hoppers, limestone for FGD. High-temperature applications across regional generation facilities.

Common fit:
NCR-86-C, CNCR-190

Mining & Minerals

Aggregate, limestone, salt, fertilizer. Abrasive bulk solids, outdoor piles, conveyor-fed bins. Regional operations in WV and PA.

Common fit:
NCR-86-C, CNCR-190

Don't see your exact industry?

Tell us your vessel and material - we'll spec the right model for your application.

FAQ

NCR is the full-featured line with longer range (up to 393 ft). CNCR is the compact line — shorter range, smaller form factor, easier install. CNCR-300 adds battery/wireless.

Yes — that's the main reason for radar over ultrasonic. The 80 GHz signal is unaffected by dust, vapor, or steam.

NCR-86 can. Most CNCR variants are spec'd for one or the other — see the models pdfs to confirm.

Yes. BinMaster non-contact radars output standard 4-20 mA analog signals and support HART protocol for digital communication. Select CNCR models also support Modbus RTU and IO-Link. These signals integrate with virtually all major PLCs and DCS systems including Allen-Bradley, Siemens, and Honeywell. If you have a specific integration question, we can confirm compatibility before you order.

Absolutely — that's what we're here for. Tell us your vessel type, material, size, and environment in the form above, and we will recommend the right model for your application. If you'd rather talk it through, call us at (440) 350-7460. We spec BinMaster sensors across dozens of industries every week and are ready to help give you more insight into your bins, silos, and tanks.

Yes — we make plant visits across Ohio, Pennsylvania, West Virginia, and Western New York. If you have a challenging application, unusual vessel geometry, or are evaluating multiple sensors across a facility, we'll come to your site to evaluate and discuss your needs. Call (440) 350-7460 or fill out the form above to schedule.
